Stabilus 9239bj Pneumatic Spring, Liner/Load Compartment

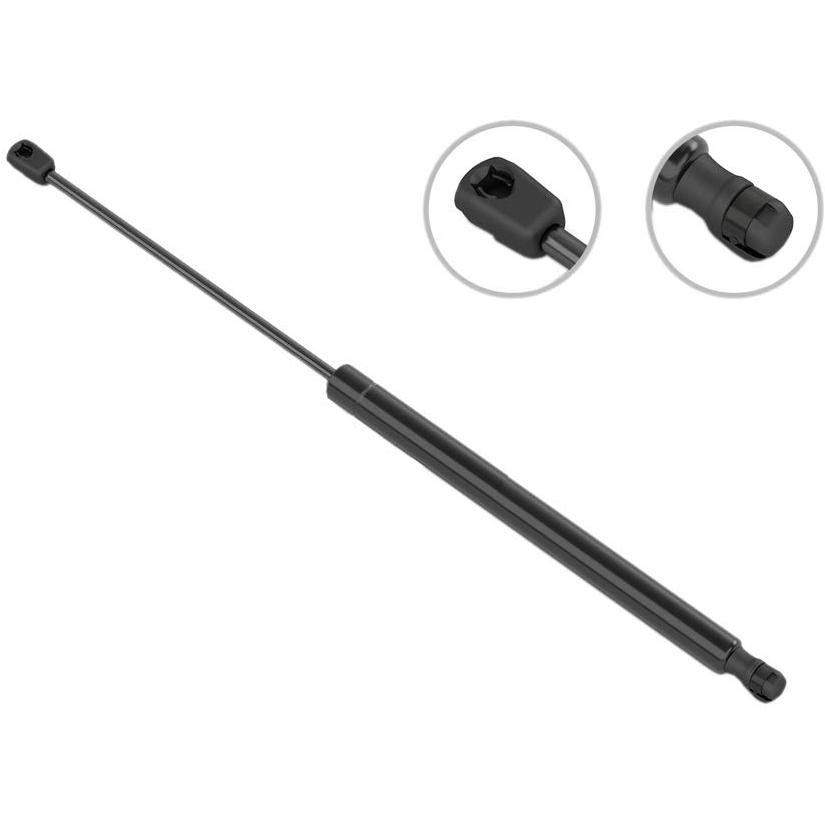

Stabilus 9239BJ Pneumatic Spring – Liner/Load Compartment

The Stabilus 9239BJ Pneumatic Spring is a high‑performance gas spring designed specifically for the liner or load compartment of automotive and commercial vehicles. Engineered with precision, this component delivers smooth, controlled lift and reliable support for cargo areas, tailgates, and rear hatches.

Key Features & Technical Highlights

• Load Capacity: Rated to handle up to 360 Newtons (N), ensuring robust performance under heavy loads.
• Stroke Length: Adjustable stroke options ranging from 120 mm to 200 mm, allowing customization for various vehicle models and cargo dimensions.
• Construction: Made from high‑strength steel alloy with a protective coating that resists corrosion, rust, and wear in harsh environments.
• Pneumatic Seal: Equipped with an advanced O‑ring seal system to prevent gas leakage and maintain consistent pressure over extended service life.
• Mounting Flexibility: Features standard mounting brackets compatible with most automotive chassis, enabling straightforward installation without extensive modifications.
• Temperature Tolerance: Operates effectively across a wide temperature range from –40 °C to +120 °C, suitable for both cold climates and high‑heat applications.

Applications & Compatibility

The Stabilus 9239BJ is widely adopted in the automotive sector for:

• Rear Hatch Lift Systems: Provides smooth opening and closing of tailgates, enhancing safety and user convenience.
• Cargo Compartment Support: Maintains a stable platform for loading and unloading goods, reducing strain on vehicle structures.
• Commercial Vehicle Tailboxes: Offers reliable support for delivery vans, trucks, and utility vehicles where load stability is critical.
• Specialty Vehicles: Adaptable to custom builds such as camper conversions, mobile workshops, and emergency response units.

Installation Guidelines

Installing the Stabilus 9239BJ involves a few straightforward steps that can be completed with standard automotive tools:

1. Preparation: Verify that the mounting surfaces are clean, dry, and free of debris. Inspect the gas spring for any visible damage before installation.
2. Mounting Bracket Placement: Secure the bracket to the vehicle frame using the supplied bolts. Ensure torque specifications match manufacturer recommendations.
3. Gas Spring Attachment: Slide the gas spring onto the bracket, aligning the piston rod with the designated opening in the cargo compartment or hatch mechanism.
4. Locking Mechanism: Tighten all fasteners to lock the gas spring in place. Double‑check alignment to avoid binding during operation.
5. Functional Test: Operate the hatch or load area several times to confirm smooth movement and proper pressure retention.

Maintenance & Longevity

To ensure optimal performance and extend service life, follow these maintenance practices:

• Regular Inspection: Check for signs of wear, corrosion, or gas leakage every six months. Look for unusual noises during operation.
• Cleaning: Wipe the exterior with a mild detergent solution and dry thoroughly to prevent moisture buildup.
• Lubrication: Apply a light coat of high‑temperature grease to moving parts if recommended by the manufacturer, avoiding over‑lubrication which can attract dust.
• Replacement Schedule: Replace the gas spring after approximately 10,000 operational cycles or sooner if performance degrades.

Performance Benefits

The Stabilus 9239BJ delivers several tangible advantages for vehicle operators and manufacturers alike:

• Consistent Lift Force: Maintains a steady pressure profile, reducing the effort required to open or close heavy hatches.
• Durability: Built to withstand repetitive use without significant loss of performance.
• Safety Enhancement: Prevents sudden drops or uncontrolled movements that could endanger passengers or cargo.
• Energy Efficiency: The pneumatic design minimizes energy consumption compared to hydraulic alternatives.

Compatibility with Vehicle Models

The 9239BJ series is engineered for a broad range of vehicle platforms, including but not limited to:

• Passenger Cars: Rear hatch systems on models ranging from compact sedans to midsize SUVs.
• Light Commercial Vehicles: Delivery vans and utility trucks that require reliable cargo support.
• Specialty Applications: Custom builds such as mobile workshops, emergency response units, and recreational vehicles.

Conclusion

The Stabilus 9239BJ Pneumatic Spring – Liner/Load Compartment stands out as a reliable, high‑quality solution for automotive lift systems. Its robust construction, versatile mounting options, and proven performance make it an ideal choice for manufacturers seeking to enhance vehicle safety, functionality, and user experience.
